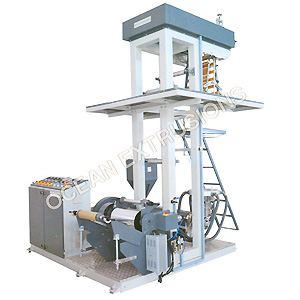

Ocean offering a diverse range of customized mono layer blown film lines - to suit a broad spectrum of applications and capacities, not many manufacturers in the world offer such tailor made solutions.
mono layer blown film Plant are available with outputs ranging from 30 kg/hr to 200 kg/hr and lay-flat widths ranging from 50 mm to 2000 mm for processing polymers as diverse as LD, LLD, HM / HDPE, Applications include PE general purpose films, HDPE pick-up bags, LD / LLD / HD lamination films, HD twist wrap films, stretch and cling films, shrink films, anti-rust films and paper like films.
blown film lines are also available in special configurations to process wide width HDPE film through high stalk bubble. .
Ocean lines incorporate advanced features like-grooved feed section, barrier screw, gravimetric blending/dosing system, Liquid PIB dosing system, manual as well as automatic screen changer, oscillating die / platform / haul-off, internal bubble cooling, automatic bubble cage, online thickness monitoring and control, surface and centre winders with tension control.
Ocean also offer co-Extrusions blown film plant and multi layer blown film plant up to five layers film with rotating die, haul of and platform In film plant to manufacture barrier film, packaging film and stretch film.
Process Raw material(HM/HDPE)feed in Hoper for Process material gose to Extrusions for melting, Screw barrel melt the material and die give the desire shape material to film and cool and wind
Application
1. packaging Film
2. Watter pouch
3. wafer pouch
4. Stretch film
5. HM Film
6. HM carry bag
7. Liner Bag
8. protection Film
MODEL
| SR NO. |
PLANT MODEL |
SCREW SIZE (MM) |
SCREW L/D RATIO |
FEED SECTION TYPE |
DIE WIDTH (INCH) |
MAX LAYFLAT WIDTH (INCH)) |
MAX PRODUCTION CAPACITY (KGS PER HOUR) |
TOTAL CONNECTED LOAD (KW) |
MAIN DRIVE (HP) |
DIMENSION OF PLANT IN FEET |
| L |
W |
H |
| 1 |
OESBL 35 |
35 |
28:1 |
GROOVED FEED |
|
4 TO 18 |
25 TO 25 |
17 |
7.5 |
7 |
6 |
10 |
| 2 |
OESBL 40 |
40 |
28:1 |
GROOVED FEED |
|
6 TO 24 |
35 TO 40 |
23 |
10 |
7 |
7 |
11 |
| 3 |
OESBL 45 |
45 |
28:1 |
GROOVED FEED |
|
8 TO 30 |
45 TO 50 |
33 |
15 |
14 |
10 |
15 |
| 4 |
OESBL 51 |
51 |
32:1 |
GROOVED FEED |
|
12 TO 39 |
60 TO 90 |
40 |
30 |
23 |
17 |
17 |
| 5 |
OESBL 55 |
55 |
32:1 |
GROOVED FEED |
|
47 |
60 TO 120 |
58.5 |
40 |
23 |
17 |
17 |
| 6 |
OESBL 65 |
65 |
32:1 |
GROOVED FEED |
|
12 TO 49 |
120 TO 140 |
60 |
50 |
20 |
7 |
9 |
| 7 |
OESBL 51 |
51 |
28:1 |
SMOOTH FEED |
|
8 TO 28-HM 4 TO 24-LL |
30 TO 35 |
30 |
10 |
23 |
17 |
17 |
| 8 |
OESBL 55 |
55 |
28:1 |
SMOOTH FEED |
|
45 |
30 TO 60 |
40 |
12.5 |
23 |
17 |
17 |
| 9 |
OESBL 65 |
65 |
28:1 |
SMOOTH FEED |
|
45 |
30 TO 60 |
40 |
15 |
23 |
17 |
17 |
|
